Chapter 7 Thin Provisioning Pool Management
7.2 Functions in the Action Area for Thin Provisioning
ETERNUS Web GUI User’s Guide
Copyright 2013 FUJITSU LIMITED P2X0-1090-10ENZ0
240

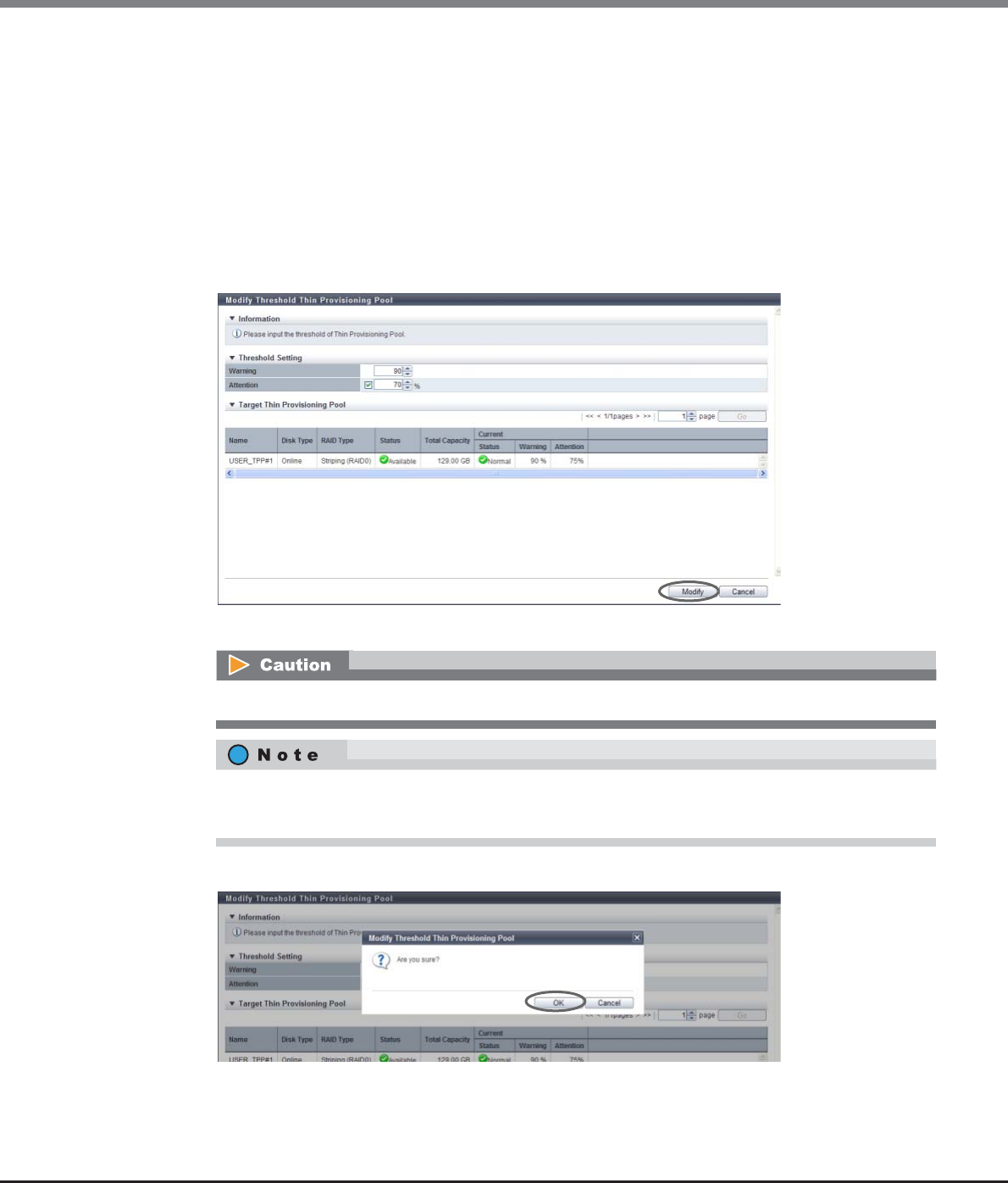

2 Select a new threshold, and click the [Modify] button.
• Warning
Change the warning threshold (%) for monitoring the TPP used capacity between 5 and 99.
Specify the warning threshold so that the "Warning" threshold is the same or larger than the
"Attention" threshold.
• Attention
Specify the attention threshold (%) for monitoring the TPP used capacity between 5 and 80.
Specify the Attention threshold so that the "Warning" threshold is the same or larger than the
"Attention" threshold.
The "Attention" threshold can be omitted. When setting the "Attention" threshold, select the
checkbox.
→ A confirmation screen appears.
3 Click the [OK] button.
→ Modify Threshold starts.
When "Warning" is smaller than "Attention", an error screen is displayed.
• When changing a "Attention" threshold, select the checkbox and then specify a new threshold.
• When omitting a "Attention" threshold, clear the checkbox.
