- Type
The drive type is displayed.
• For SAS disks: Online
• For Nearline SAS disks: Nearline
• For SSDs: SSD
• For SEDs: SED
- Usage
The usage of the drive is displayed.
• For a drive that is used for user data or an unused drive: Data
• For a drive that is registered as a Global Hot Spare: Global Hot Spare
• For a drive that is registered as a Dedicated Hot Spare: Dedicated Hot Spare
- RAID Group
If the drive is registered in a RAID group, the RAID group name to which the drive belongs is displayed.
By clicking this item, the [RAID Group Detail] screen is displayed.
● For ETERNUS DX410 S2/DX440 S2 and ETERNUS DX8100 S2
The following items are displayed in the Main area:

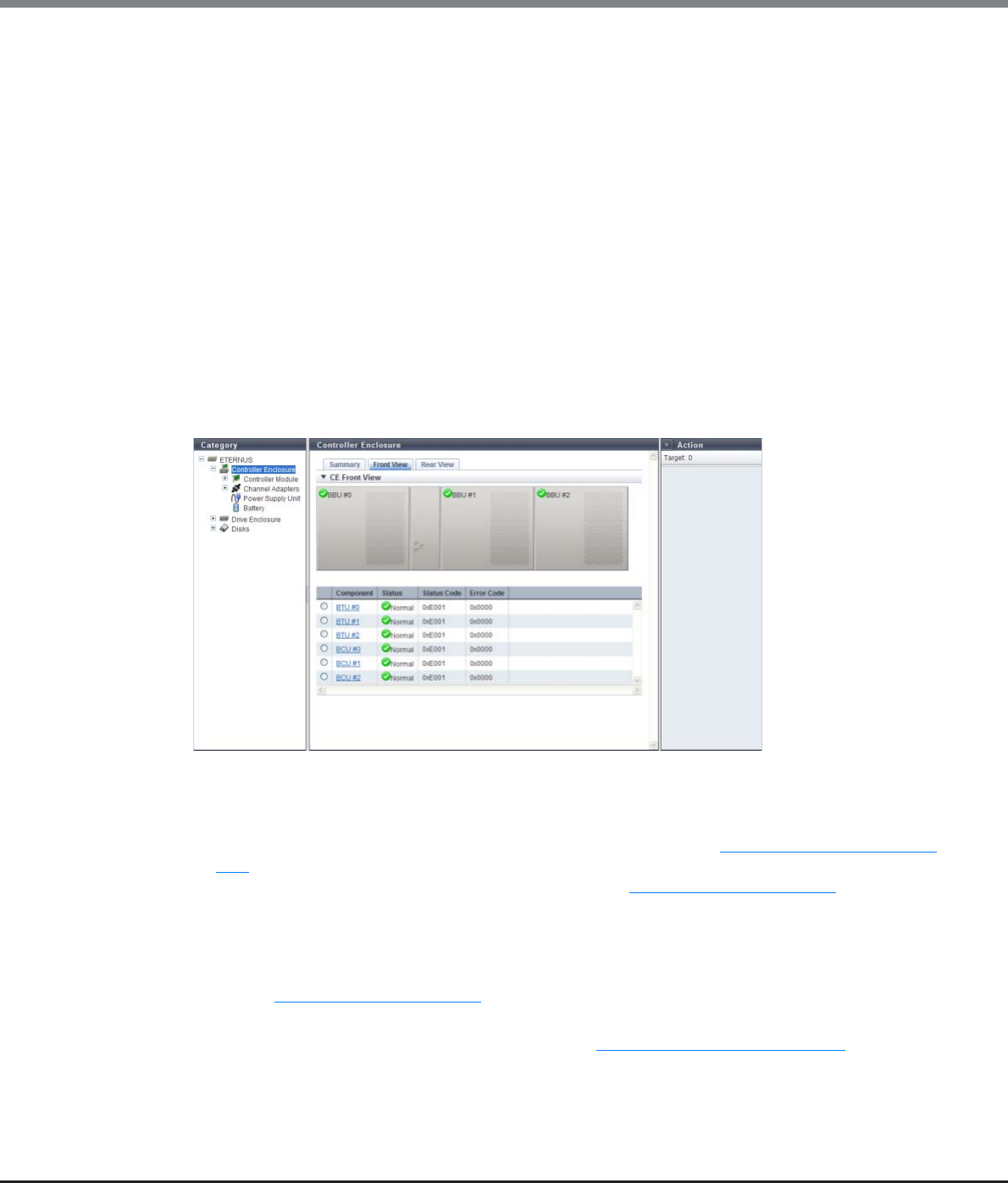

- Device image
The front view of the CE that is installed in the ETERNUS DX Disk storage system is displayed.
The Battery Backup Unit (BBU) status is displayed with icons. Refer to "B.5 Component Status" (page
977) for details.
By clicking the BBU, the [BTU] screen is displayed. Refer to "10.1.2.9 Battery" (page 642)
for details.
- Component
The Battery Unit (BTU) number or the Battery Charger Unit (BCU) number is displayed.
By clicking the BTU number, the [BTU Detail] screen is displayed.
By clicking the BCU number, the [BCU Detail] screen is displayed.
Refer to "10.1.2.9 Battery" (page 642)
for details.
- Status
The BTU status or the BCU status is displayed. Refer to "B.5 Component Status" (page 977)
for details.
- Status Code
The status code of BTU or BCU is displayed.
- Error Code
The error code of BTU or BCU is displayed.
