System Overview
• Single Mixer Effect 5
In this effect, because the DSK is in use, the background cannot transition — you
can use either A or B. Here, you can independently fade two scaled PIPs up and
down — with or without the DSK on screen.

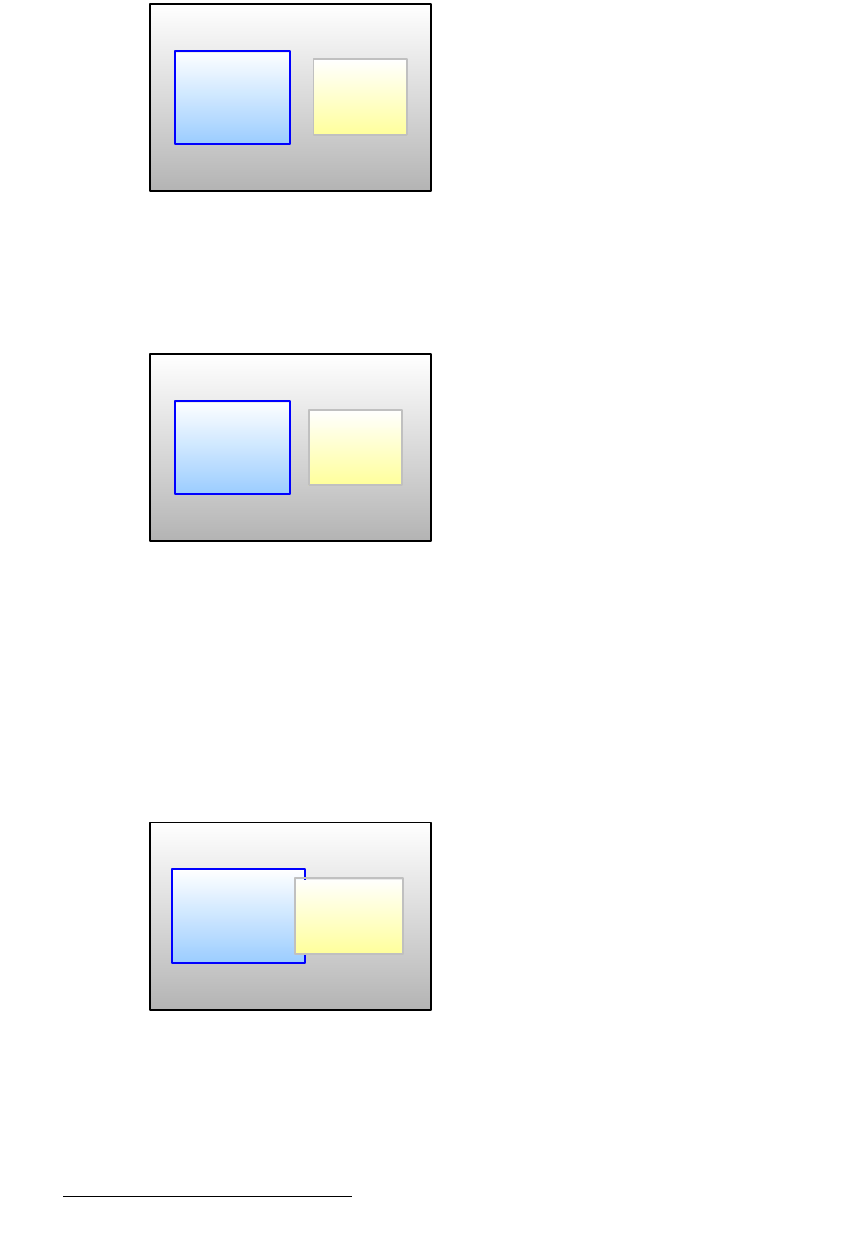

Figure 1-10. Single Mixer Effect 5 Diagram
• Single Mixer Effect 6
This transition is similar to effect 5, but because the DSK is not in use, the
background can transition. You can also independently fade the two PIPs.
Figure 1-11. Single Mixer Effect 6 Diagram
aì~ä=jáñÉê=bÑÑÉÅíë
A dual Mixer Encore system provides two backgrounds, a total of four scalable layers in the
two Mixers, plus an unscaled DSK.
• Dual Mixer Effect 1
Using the capabilities of two Mixers, this effect enables you to transition
backgrounds, in addition to transitioning the PIPs on both Mixer 1 and 2 — with or
without the DSK on screen.
Figure 1-12. Dual Mixer Effect 1
Background
PIP
1A
PIP
1B
DSK
Background A ↔ B
PIP
1A
PIP
1B
Background A ↔ B
PIP
1A ↔ 1B
PIP
2A ↔ 2B
DSK
