404 Encore Presentation System • User’s Guide • Rev 04
bK==^ééäáÅ~íáçå=kçíÉë
Encore Controller to Router Connections
`~ÄäÉ=`çååÉÅíáçå=Ô=píê~áÖÜí=qÜêçìÖÜ
The table below illustrates the required pin connections for typical Encore-to-Router
configurations. A straight-through RS-232 cable is used between Encore and the router.

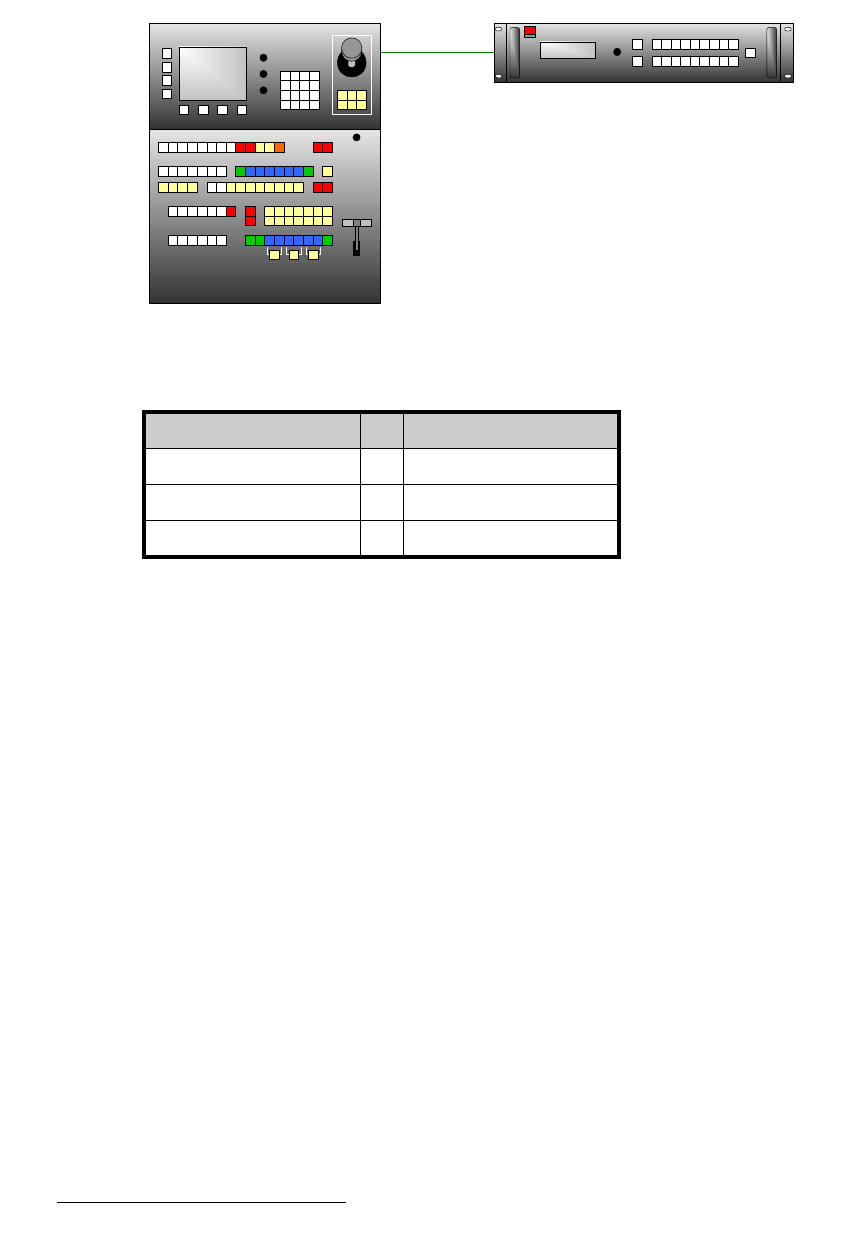

Figure E-2. Straight through configuration
Table E-2. Straight-through pin connection
Encore Pin Router Pin
2 ↔ 2
3
↔ 3
5
↔ 5
Encore Controller (SC or LC) MatrixPRO SDI Router
RS-232
Straight-through
