44 Encore Presentation System • User’s Guide • Rev 04
2. Hardware Orientation
Video Processors
sáÇÉç=mêçÅÉëëçêë
The following topics are discussed in this section:
Video Processor Front Panel
VPx Front Panel
Video Processor Rear Panel
VPx Rear Panel
A Word About M/E Connector Priority
M/E Connectors (VP)
M/E Connectors (VPx)
sáÇÉç=mêçÅÉëëçê=cêçåí=m~åÉä

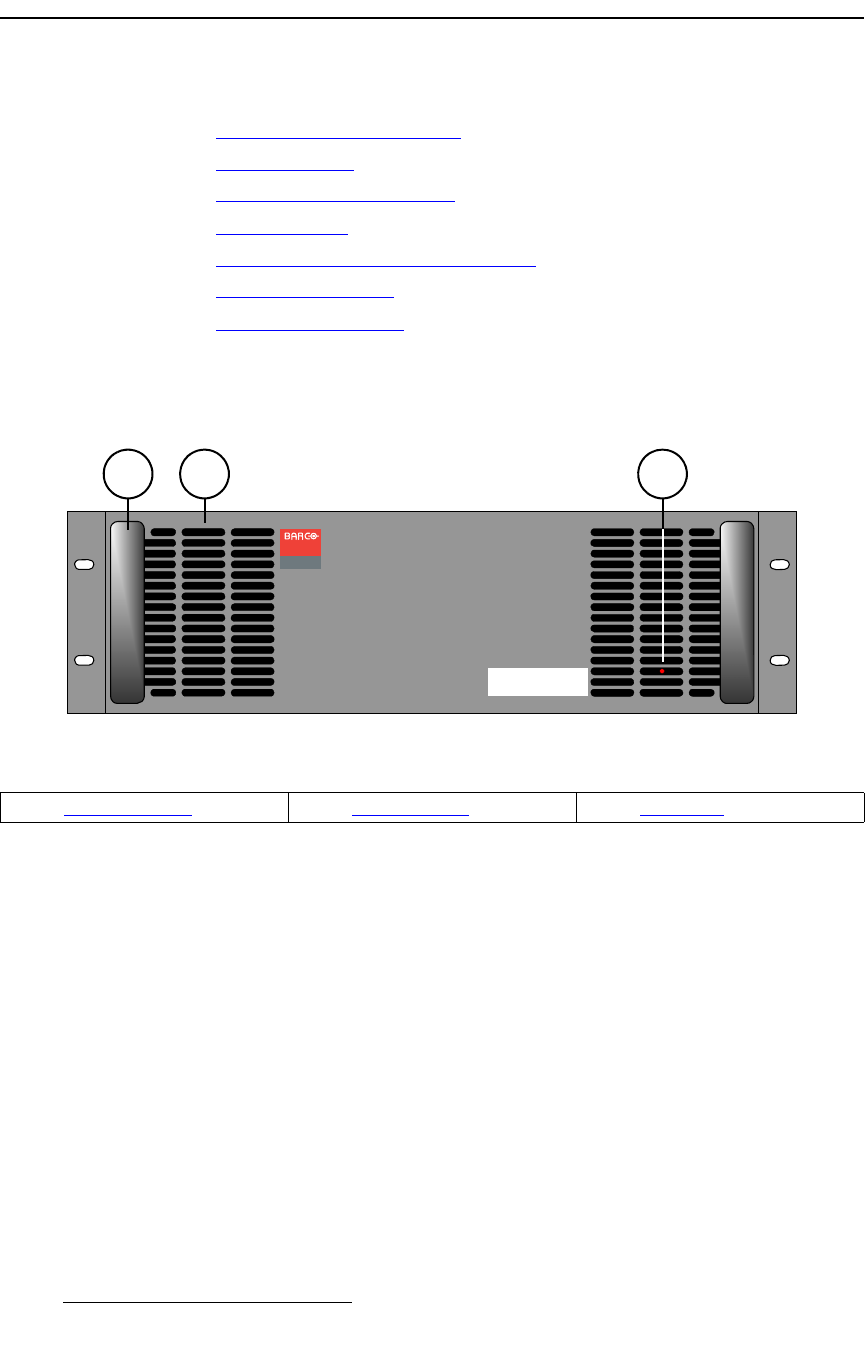

The figure below illustrates the Video Processor (VP) front panel:
Figure 2-1. VP Front Panel
Following are descriptions of each front panel control feature:
1) Chassis Handles
Two Chassis Handles are provided for ease of installation and transportation.
When transporting the chassis by its handles,
do not set it down with the rear
connectors towards the ground. If you do, you may damage the rear connectors.
2) Air Intake Ports
Two Air Intake Ports are provided for chassis cooling. The direction of airflow is
from the front to the rear. To prevent overheating, do not block the air intake ports.
3) Status LED
The Status LED, behind the right-hand Air Intake Port, indicates the following:
~ Solid Red: the unit is initializing
~ Solid Green: the unit is ready for use
~ Blinking Red: an error has occurred
ENCORE
Folsom
Visibly yours
2 31
1) Chassis Handles 2) Air Intake Ports 3) Status LED
