Encore Presentation System • User’s Guide • Rev 04 403
bK==^ééäáÅ~íáçå=kçíÉë
Encore Controller to Router Connections
buq=`ljj=máåçìíë
The table below illustrates the pinouts on Encore's EXT COMM serial connector.

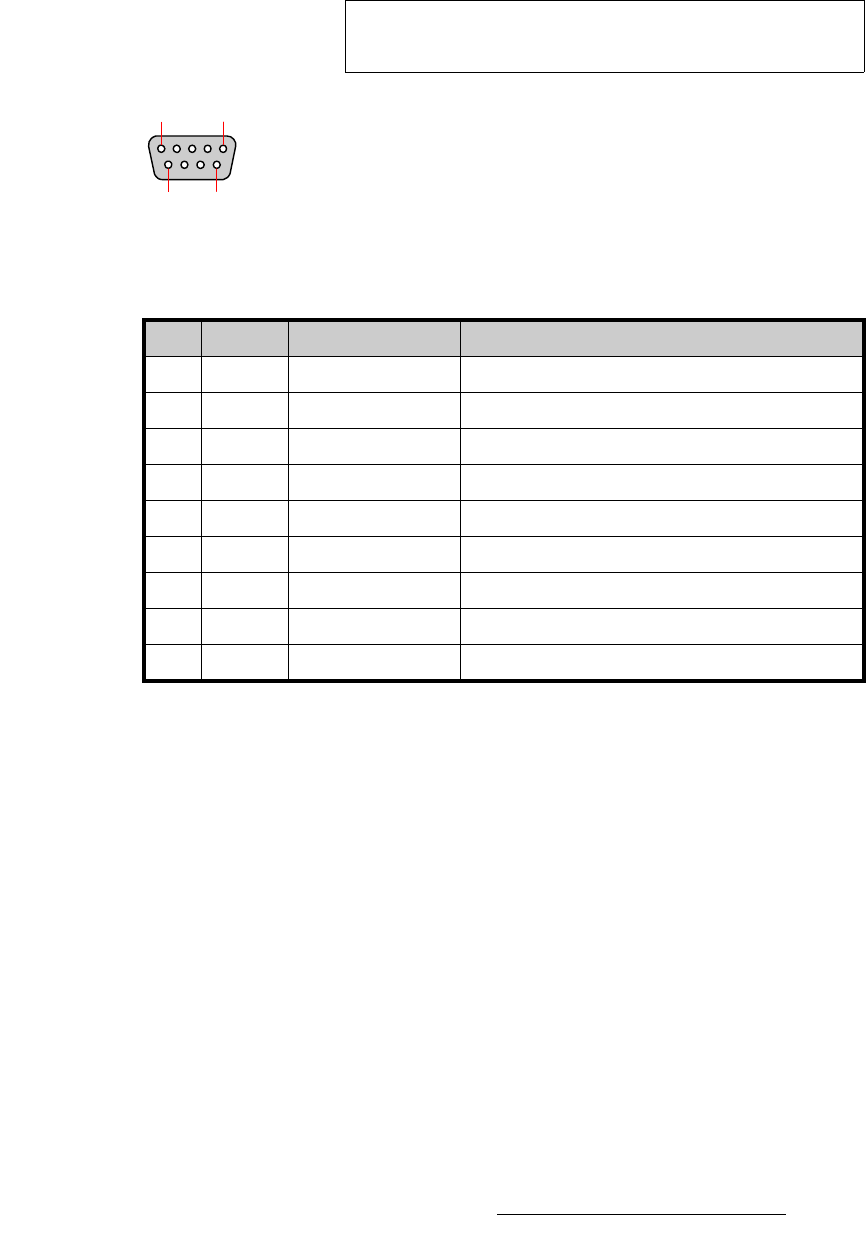

Figure E-1. Ext Comm Connector
Note
Data "direction" information is provided from the point of view
of the Encore controller.
Table E-1. Ext Comm Connector Pinouts
Pin Signal Description Note
1 CD Carrier Detect
2 TXD Transmitted Data Sends data. Connects to router's receiving pin.
3 RXD Received Data Receives data. Connects to router's transmitting pin
4 DSR Data Set Ready
5 GND Signal Ground Connects to Ground Pin on Router
6 DTR Data Terminal Ready
7 CTS Clear To Send
8 RTS Request To Send
9 RI Unused
