72 Encore Presentation System • User’s Guide • Rev 04
3. Hardware Installation
Installation
táÇÉ=pÅêÉÉå=`çåÑáÖìê~íáçå
The figure below illustrates a block diagram of a “triple” wide screen configuration. Use this
diagram for reference in the following procedure. Please note:
• Aux destinations are not shown in the diagram below.
• This procedure can be used for wide screen configurations consisting of from 2 to
32 screens. Horizontal, vertical, and “array” blending is set using the
Destination
Setup Menu.
• A VP must be used as the “master” processor. Thereafter, either a VP or a VPx
can be used.

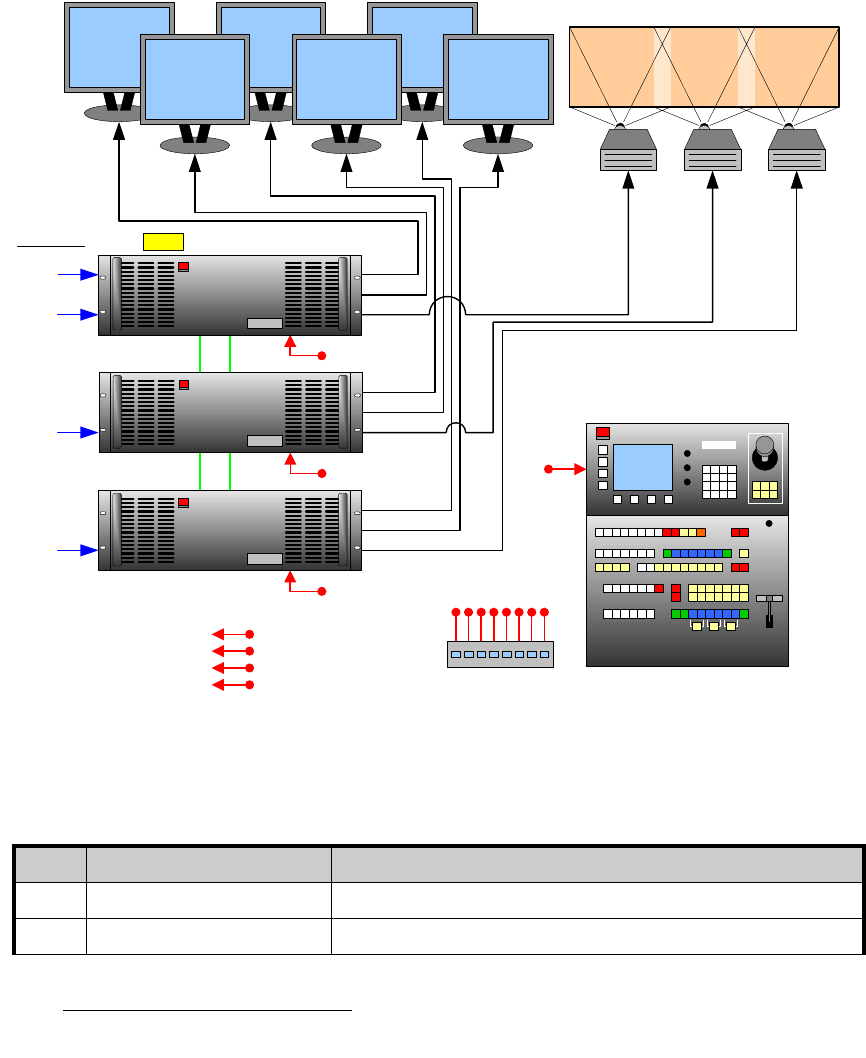

Figure 3-3. Block Diagram, Wide Screen Encore Configuration
For this procedure, you will need:
PG 2
PVW
PG 1
Projector #1 Projector #2 Projector #3
Program #1 Program #2 Program #3
Preview #1 Preview #2 Preview #3
Controller SC or LC
VP #1
VP or VPx #2
Ethernet Switch
PG 2
PVW
PG 1
PG 2
PVW
PG 1
Scaled
Sources
Unscaled
Sources
M/E Inputs
Unscaled
Sources
Unscaled
Sources
Program
Link
VP or VPx #3
Source
Link
Program
Link
Source
Link
To:
Routers
ScreenPRO-II
PresentationPRO-II
ImagePRO
Note: #1 is VP only, not VPx
Table 3-4. Equipment List, Wide Screen Encore Configuration
Qty. Item Note
1 VP VPx cannot be used as the “master” processor
2 VP or VPx Use either processor as a “slave” unit in a widescreen configuration
