NEAX2400 IPX Feature Programming Manual
NDA-24297, Issue 1
Page 273
Digital Display - Station D-5
D-5 Digital Display - Station
General Description
This feature provides the Attendant with a visual display (via the ATTENDANT CONSOLE [A-3]) of the telephone
number, its Trunk Route Restriction, CLASS OF SERVICE - INDIVIDUAL [C-15] and TENANT [T-12] number
during Attendant-to-station connection.
Operating Procedure
The DIGITAL DISPLAY STATION is automatically activated whenever the Attendant answers an incoming call
from a station, or originates a call to a station.
Service Conditions
1. The telephone number is displayed on the right side of the ATTENDANT CONSOLE [A-3] digital
display. Trunk Route Restriction CLASS OF SERVICE - INDIVIDUAL [C-15] and TENANT [T-12]
number are simultaneously displayed on the left. See Example 1 below.
Example 1: Single-digit Trunk Route Restriction CLASS OF SERVICE - INDIVIDUAL [C-15] and
TENANT [T-12] number; 4-digit telephone number.
2. If the Trunk Route Restriction Class and/or TENANT [T-12] number are two digits, only the telephone
number may be displayed. Refer to Example 2.
3. If a station dialed by the Attendant is busy or in the LINE LOCKOUT [L-3] mode, only the telephone
number will be displayed.
4. The ATTENDANT CONSOLE [A-3] digital display is limited to a 6-digit numeric display. Since the
Class of Service and trunk routing display is in numeric form, a list must be provided to the Attendant
explaining the restrictions of each Class of Service number and trunk identification number.
5. CALL FORWARDING [C-2, 3, 5]: When this feature is activated by (or for) the called station, the
terminating telephone number is indicated on the digital display rather than the called telephone number
when the Attendant extends a call.
6. STATION HUNTING [S-7, 8, 9]: When this feature is applied because of the called station being busy
and the station belonging to a hunt group, the terminating telephone number is indicated on the digital
display rather than the called telephone number when the Attendant extends a call.
7. In the case of a 3 or 4-digit station-to-station numbering plan:
a.) 1 digit is used to identify the tenant (in the case where 2 digits are required for Class of Service,
the tenant number is not identified).
b.) 1 or 2 digits are used to identify the station Class of Service.
c.) 4 digits are used to display the telephone number.
8. The DIGITAL DISPLAY - STATION feature will occur whenever the Attendant:
a.) extends an incoming call to a user.
b.) originates a call to a user.
c.) answers a Recall or Call Forwarded call.

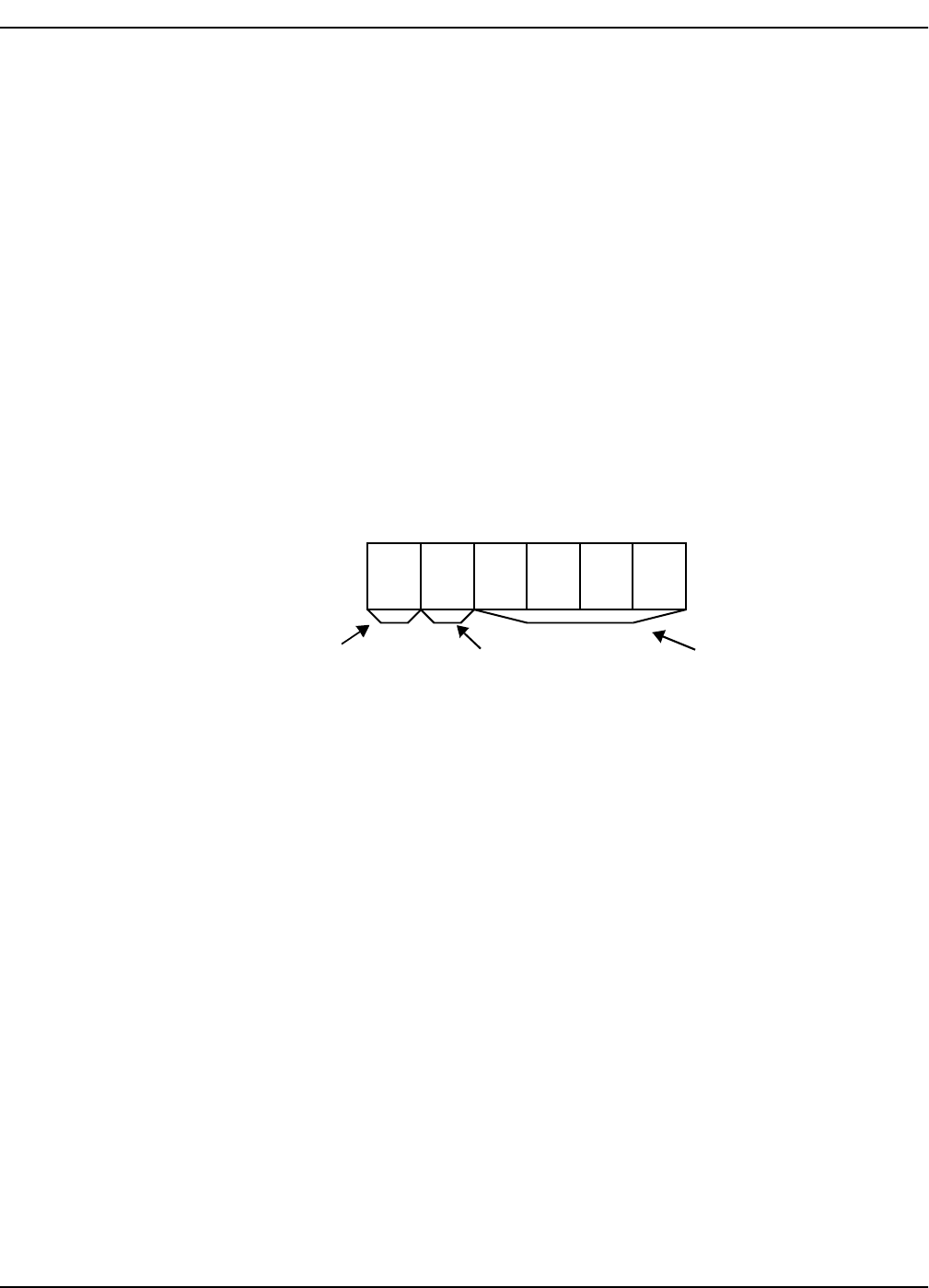

TENANT NUMBER ROUTE RESTRICTION CLASS TELEPHONE NUMBER
