NEAX2400 IPX Feature Programming Manual
Page 316 NDA-24297, Issue 1
D-149 Direct Station Selection (DSS) Console
Service Conditions (cont’d)
6. When the user calls the DSS station by SPEED CALLING - ONE TOUCH, or transfers the call to the DSS
station, and the DSS station is the member of the UCD [U-1] or station hunting group, the call follows the
UCD or the hunting operation. (If the MCI is valid, the message is sent out.)
7. The user can recognize the idle/busy status of the accommodated stations by the lamps. The left lamp (red)
lights when busy and goes out when idle and shows incoming call, hold, etc. The right lamp (green) shows
I-used, I-hold, etc.
8. The DSS console and the connected D
term
may be accommodated in the different circuit card, but should
belong to the same module group.
9. A ringing line is programmable for line keys when the device is used as an Add-On Module (ADM) only.
For example, if Station A calls Station B, and Station B shows up on a DSS Console, the indication at the
DSS Console is a flashing red LED (not ringing). Even if this line is programmed to ring, it will not.
ADM Function

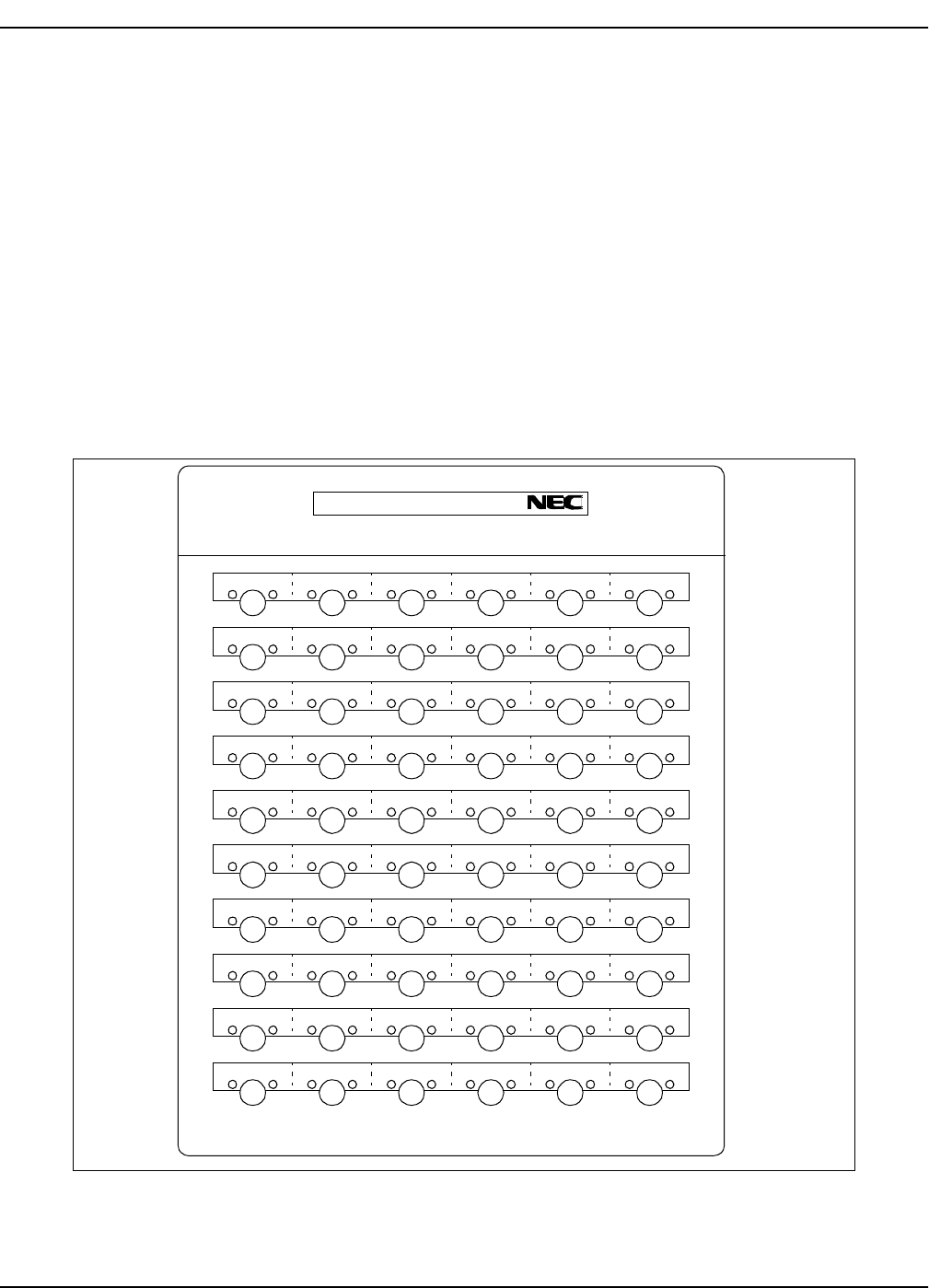

1. The 60 keys are used as the feature keys. The key layout of the DSS console is as follows:
2. On the 25th key and after, MESSAGE REMINDER [M-19], D
term
my line/prime line cannot be assigned.
00 0504030201
54 5958575655
48 5352515049
42 4746454443
36 4140393837
30 3534333231
24 2928272625
18 2322212019
12 1716151413
06 1110090807
