PHYSICAL DESIGN AND DEBUGGING
A
B
T~O
Tpd
2Tpd
3Tpd
4Tpd
rL
3r
s2V""
;::.
V
r5
5Tpd
6Tpd
...
x
231732i11-11

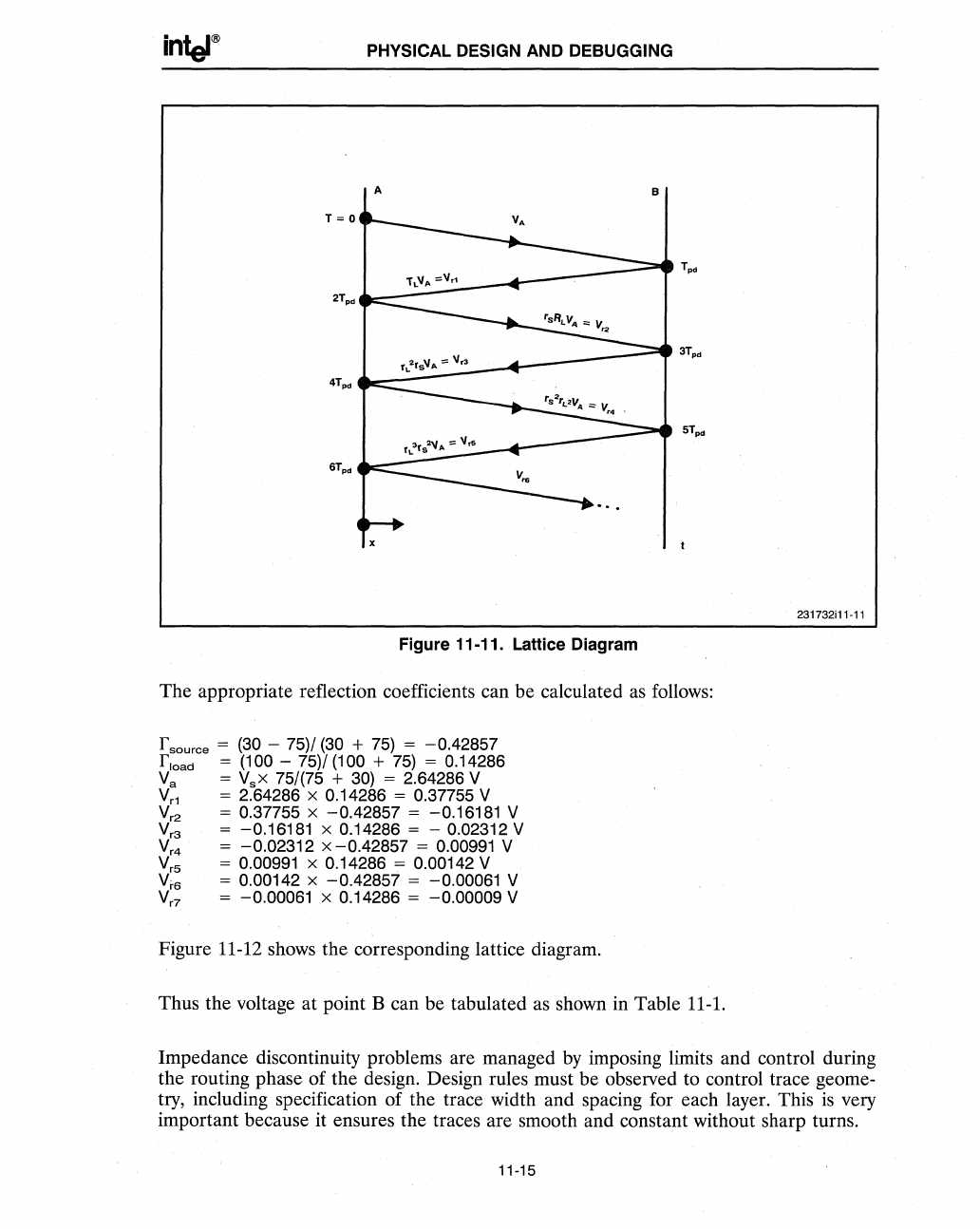

Figure 11-11. Lattice Diagram
The appropriate reflection coefficients can be calculated
as
follows:
f
source
= (30 - 75)/ (30 + 75) =
-0.42857
f
load
= (100 - 75)/ (100 +
75)
= 0.14286
Va
=
VsX
75/(75 + 30) = 2.64286 V
V
r1
= 2.64286 X 0.14286 = 0.37755 V
V
r2
= 0.37755 X
-0.42857
= -0.16181 V
V
r3
= -0.16181 X 0.14286 = - 0.02312 V
V
r4
=
-0.02312
X
-0.42857
= 0.00991 V
V
r5
= 0.00991 X 0.14286 = 0.00142 V
V'6
= 0.00142 X
-0.42857
= -0.00061 V
V
r7
= -0.00061 X 0.14286 =
-0.00009
V
Figure 11-12 shows the corresponding lattice diagram.
Thus the voltage at point B can be tabulated
as
shown in Table
11-1.
Impedance discontinuity problems are managed
by
imposing limits and control during
the routing phase of the design. Design rules must be observed to control trace geome-
try, including specification of the trace width and spacing for each layer. This
is
very
important because it ensures the traces are smooth and constant without sharp turns.
11-15
