Ipmap: Displaying an IP Map for V.25 bis
Switched Virtual Circuits
Use NCL’s Ipmap command to display the status of an IP map.
Syntax
ipmap [X.X.X.X]
[X.X.X.X] (optional) is the next hop IP address, in dotted deci-
mal notation, of the map to show. If you omit this field, all cur-
rently configured IP maps are shown. Before using the command
this way, make sure that page mode is enabled (as it is by default)
so that the resulting display will scroll one screen at a time with a
prompt for “—MORE—”. Page mode and how to get “more” are
described on page 16-14.

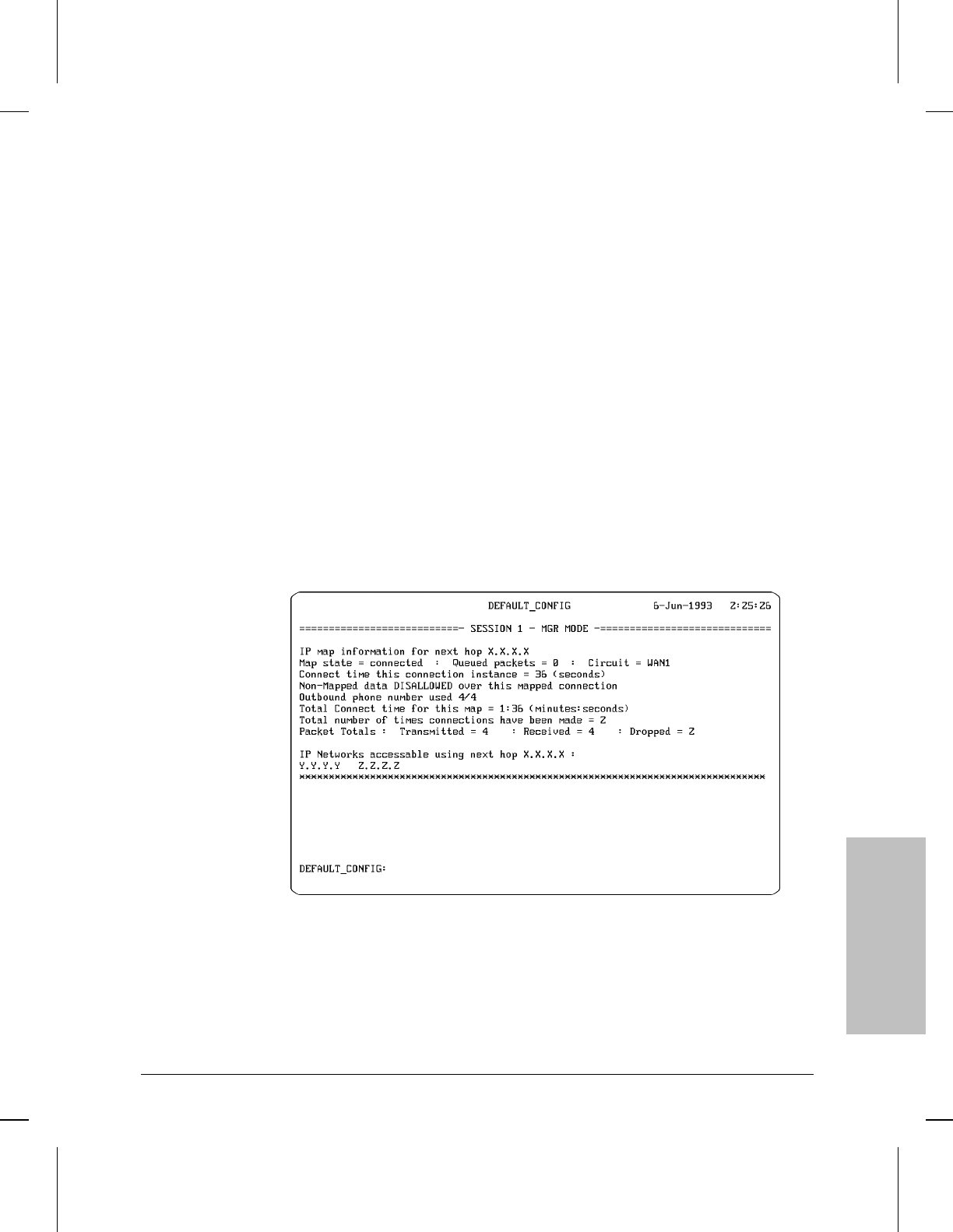

Figure 16-4 shows an example of an Ipmap display.
Figure 16-4. Sample IP Map Display
NCL
Commands
16
Using the Network Control Language
Controlling IP-Mapped Circuits for V.25 bis
16-89
