6-64
COPYRIGHT
©
1999 CANON INC. CANON imageRUNNER 600 REV.1 JAN. 2000 PRINTED IN U.S.A.
CHAPTER 6 IMAGE FORMATION SYSTEM
Figure 6-C712
11) Mount the wire cleaner. (At this time,
make sure that the orientation of the wire
cleaner is correct.)
12) Wipe the charging wire with lint-free pa-
per moistened with alcohol.

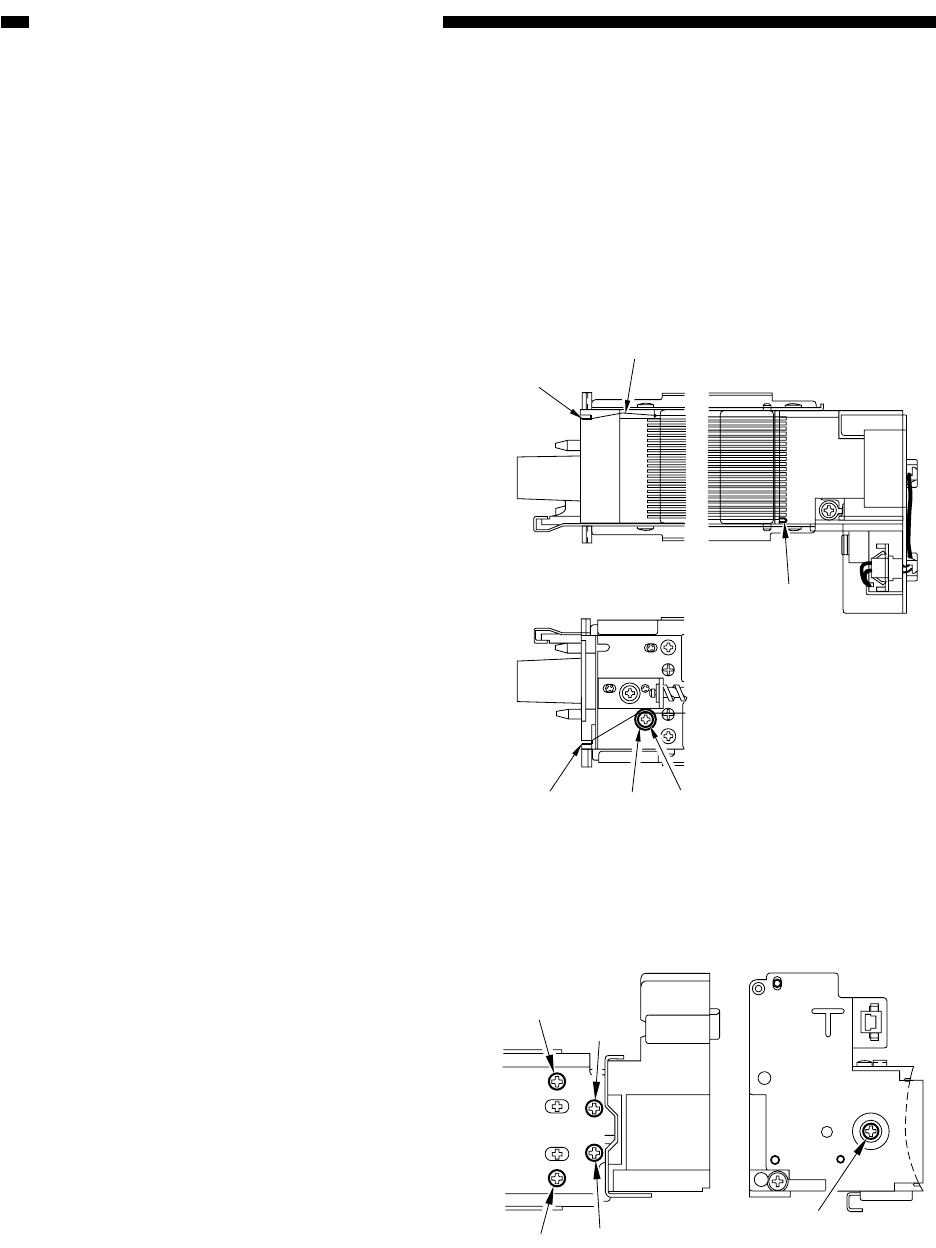

5. Routing the Grid Wire for the
Primary Charging Assembly
1) Check to make sure that the four screws
used to keep the blocks and the shielding
plate (front, rear) in place; then, hook the
end of the charging wire on stud A; after
routing the charging wire for 41 runs,
hook it on studs, B, C, and D; then, lead it
through the two washers [1], and turn it 1/
2 over the screw [2] to keep it in place.
2) Loosen the screws [3], [4], [5], and [6];
then, tighten the screw [7] at a torque of
1.5 ±0.2 kg
•
cm; then, tighten the screws
[3], [4], [5], and [6] in order at a torque of
10 kg
•
cm or more.
Figure 6-C713
A
B
C
[1]
[2]D
[3]
[4]
[5]
[6]
[7]
