CHAPTER 10 SIDE PAPER DECK

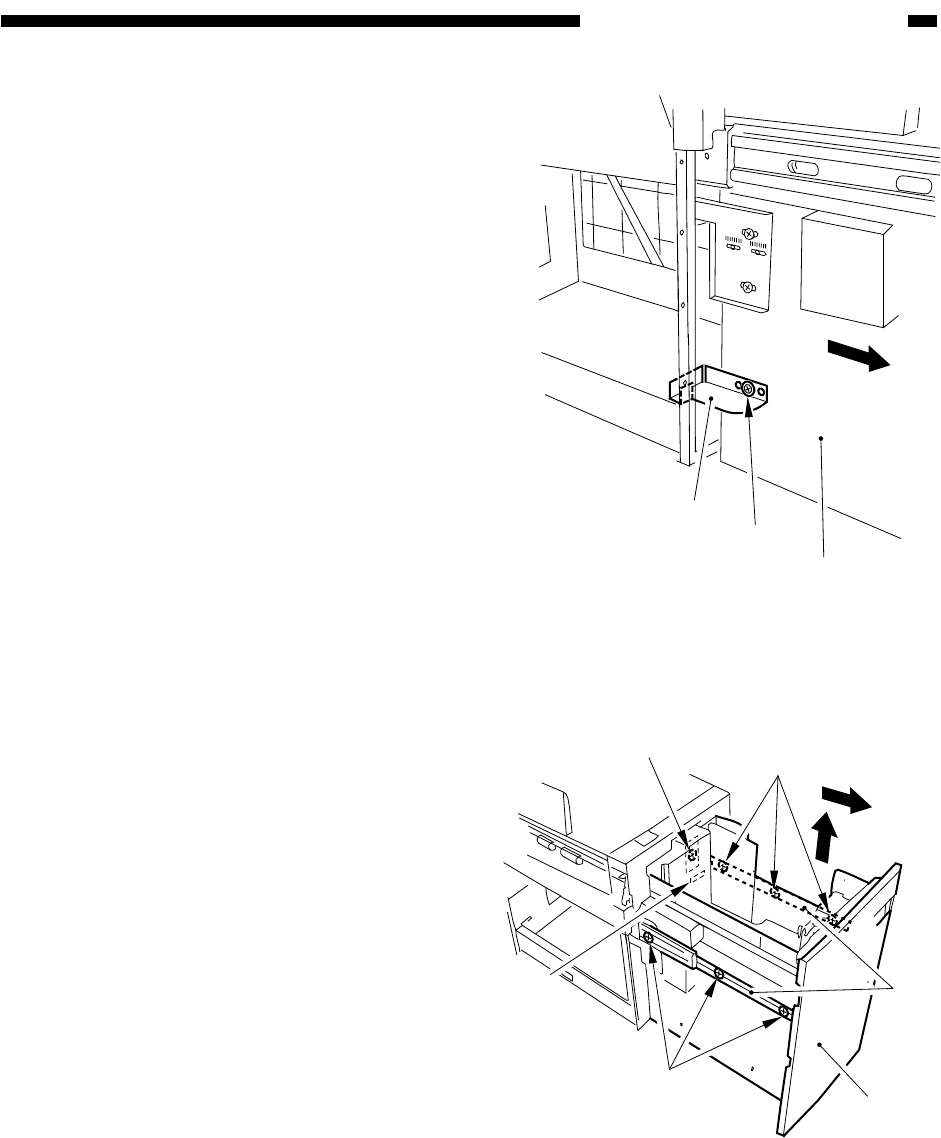

Figure 10-B306
(rear left of the
compartment)
[7]
[6]
[8]
Figure 10-B307
3) Remove the screw [6] and the stopper
plate [7]; then, slide the compartment [8]
farther out.
4) Remove the right cover. (See p. 10-24.)
5) Remove the screw [9] of the harness
guide, and disconnect the connector [10];
then, remove the three left and right
screws (each) [12], and detach the com-
partment [8] toward the front while lifting
it slightly.
6) Place the compartment [8] on the stack of
copy paper prepared in step 1).
[9]
[12]
[11]
[12]
[10]
[8]
