CHAPTER 9 EXTERNALS/AUXILIARY MECHANISMS

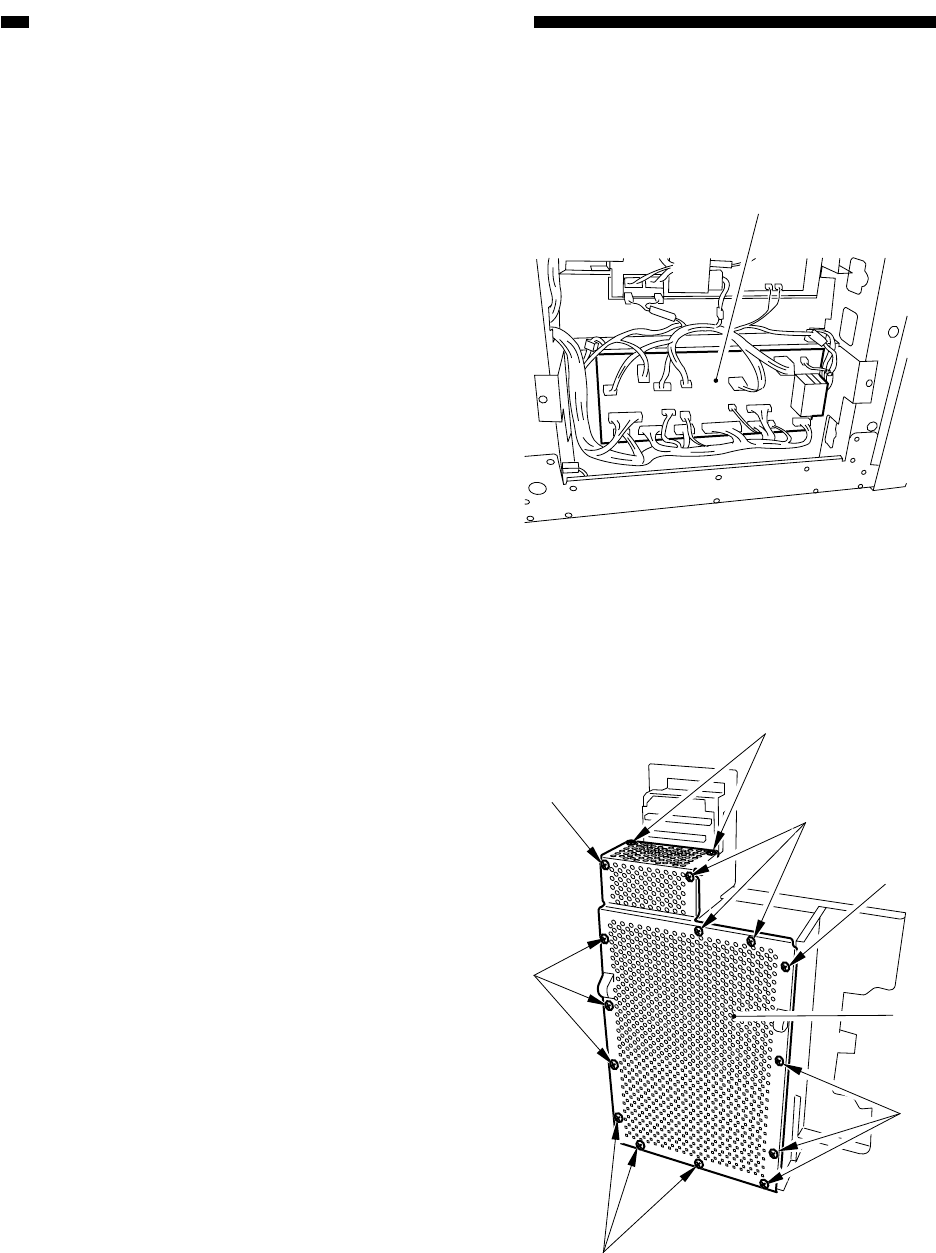

Figure 9-J701
[1]
Figure 9-K701
[1]
[1]
[1]
[1]
[1]
[1]
[1]
[2]
J. Relay PCB
1) Remove the lower left cover.
2) Disconnect the connector from the relay
PCB, and remove the PCB spacer to de-
tach the relay PCB [1].
K. MFC PCB
1) Remove the rear cover.
2) Remove the system box.
3) Remove the 16 screws [1], and detach the
system cover 1 [2].
