CHAPTER 7 PICK-UP/FEEDING SYSTEM
7-50
COPYRIGHT
©
1999 CANON INC. CANON imageRUNNER 600 REV.1 JAN. 2000 PRINTED IN U.S.A.
[8]
[9]
[8]
[8]
[8]
[8]
[10] [11] [10]
[12]
[13]
[12]

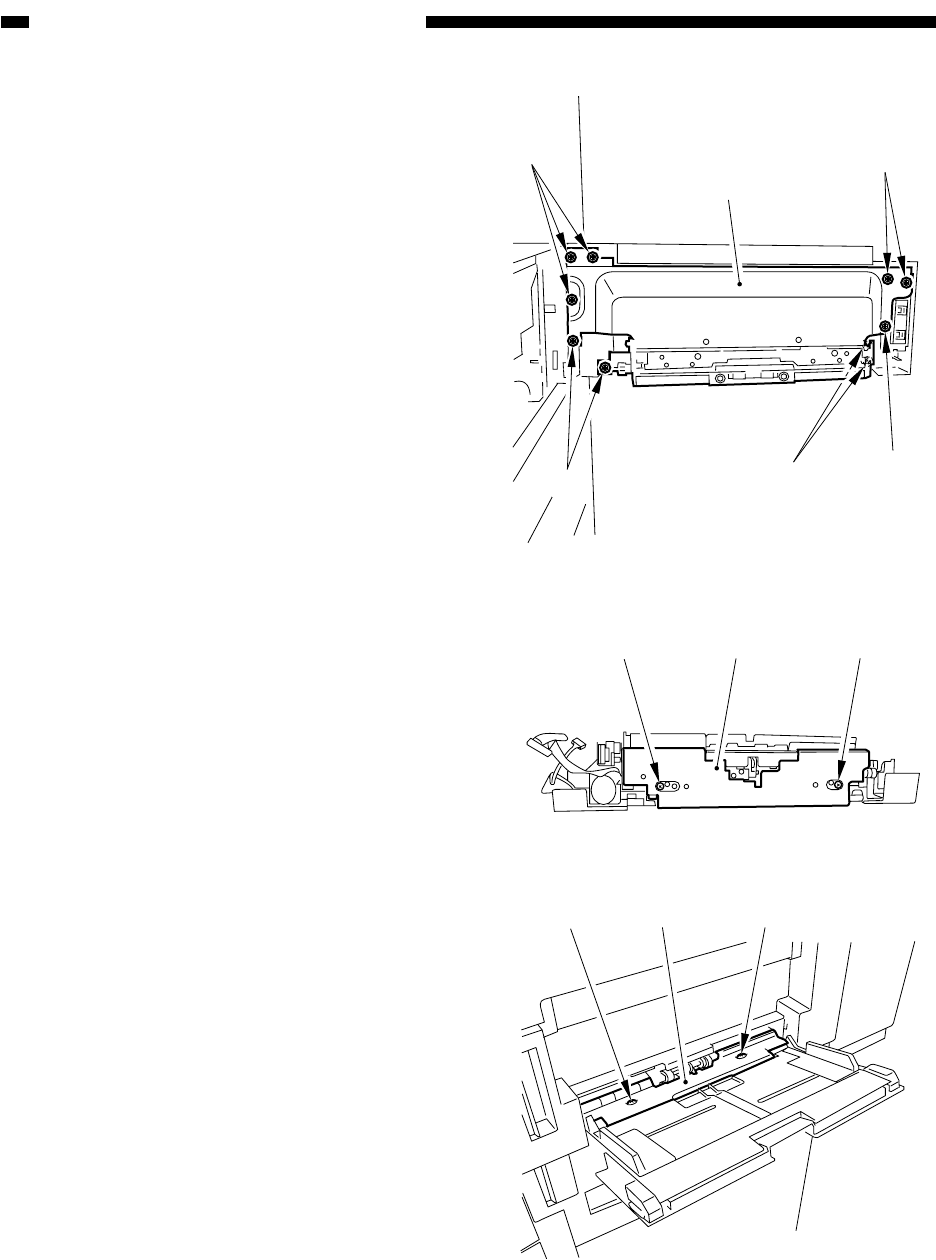

Figure 7-A816
Figure 7-817
Figure 7-A818
4) Remove the ten mounting screws [8], and
detach the manual feed tray pickup assem-
bly [9].
5) Remove the two mounting screws [10],
and detach the lower cover [11].
6) Remove the two mounting screws [12],
and detach the guide plate [13].
