Section 12 Bus State Controller (BSC)
Rev. 4.00 Sep. 14, 2005 Page 374 of 982
REJ09B0023-0400
Table 12.16 Output Addresses when EMRS Command Is Issued
Command to be
Issued
Access
Address
Access Data
Write
Access
Size
MRS
Command
Issue Address
EMRS
Command
Issue Address
CS2 MRS H'A4FD4XX0 H'******** 16 bits H'0000XX0
CS3 MRS H'A4FD5XX0 H'******** 16 bits H'0000XX0
CS2 MRS + EMRS
(with refresh)
H'A4FD4XX0 H'0YYYYYYY 32 bits H'0000XX0 H'YYYYYYY
CS3 MRS + EMRS
(with refresh)
H'A4FD5XX0 H'0YYYYYYY 32 bits H'0000XX0 H'YYYYYYY
CS2 MRS + EMRS
(without refresh)
H'A4FD4XX0 H'1YYYYYYY 32 bits H'0000XX0 H'YYYYYYY
CS3 MRS + EMRS
(without refresh)
H'A4FD5XX0 H'1YYYYYYY 32 bits H'0000XX0 H'YYYYYYY
CKIO
A25 to A0
CSn
RD/WR
RASL, RASU
DQMxx
D31 to D0
BS
Tpw
DACKn*
4
Tp
Trr
A12/A11*
3
BA1*
1
BA0*
2
CASL, CASU
Notes: 1. Address pin to be connected to pin BA1 of SDRAM.
2. Address pin to be connected to pin BA0 of SDRAM.
3. Address pin to be connected to pin A10 of SDRAM.
4. The waveform for DACKn is when active low is specified.
Trc Trc
Tmw
Hi-Z
TnopTrc
Trr
Trc
REF REF
MRS
Temw
Tnop
EMRS
PALL

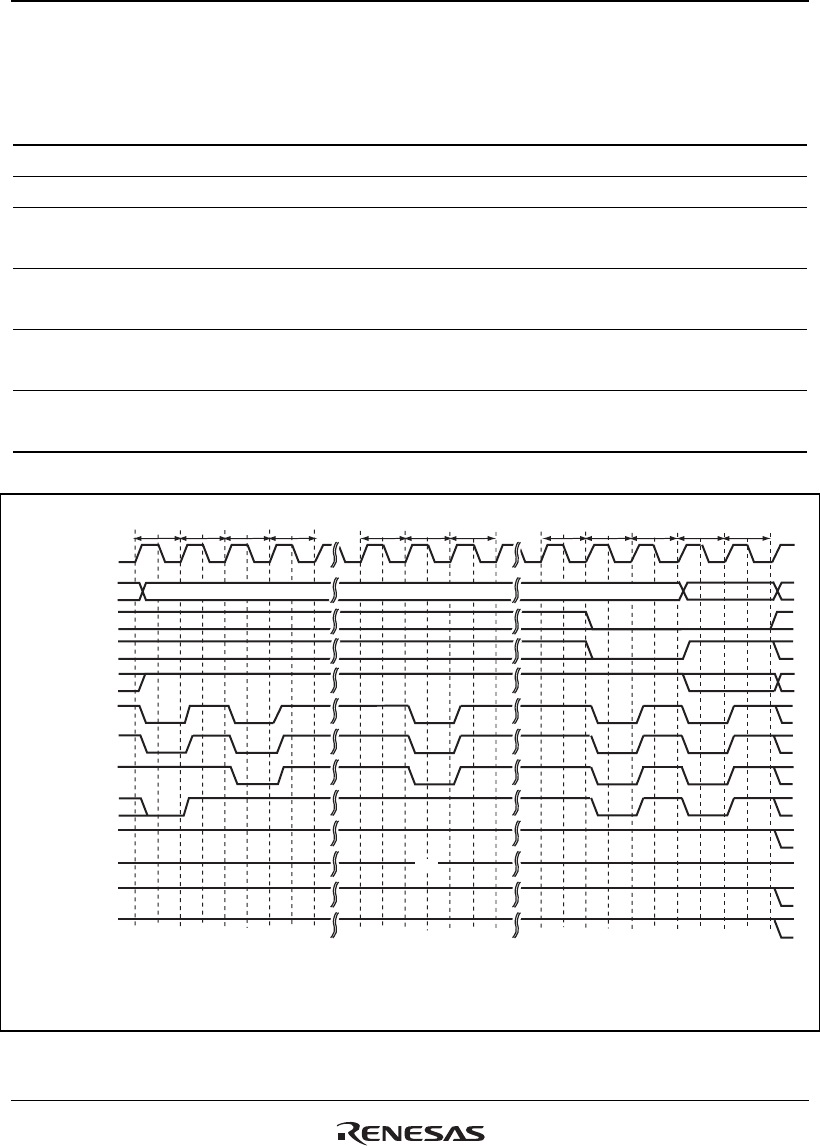

Figure 12.34 EMRS Command Issue Timing
