Section 1 Overview
Rev. 4.00 Sep. 14, 2005 Page 7 of 982
REJ09B0023-0400
1.2 Block Diagram
The block diagram of this LSI is shown in figure1.1.
X/Y
Memory
SH3
CPU
MTU
CMT
SCIF
IIC2
H-UDI
USB
DSP
UBC
AUD
ADC
BSC
DMAC
U Memory
CACHE
INTC
CPG/
WDT
External Bus
Interface
Y-BUS
I-BUS
X-BUS
L-BUS
Peripheral-BUS
I/O port
[Legend]
ADC:
AUD:
BSC:
CACHE:
CMT:
CPG/WDT:
CPU:
DMAC:
A/D converter
Advanced user debugger
Bus state controller
Cache memory
Compare match timer
Clock Pulse generator/Watch dog Timer
Central processing unit
Direct memory access controller
DSP:
H-UDI:
INTC:
SCIF:
UBC:
MTU:
USB :
IIC2:
Digital signal processor
User debugging interface
Interrupt controller
Serial communication interface
User break controller
Multi-Function Timer Pulse unit
USB function module
I
2
C bus interface

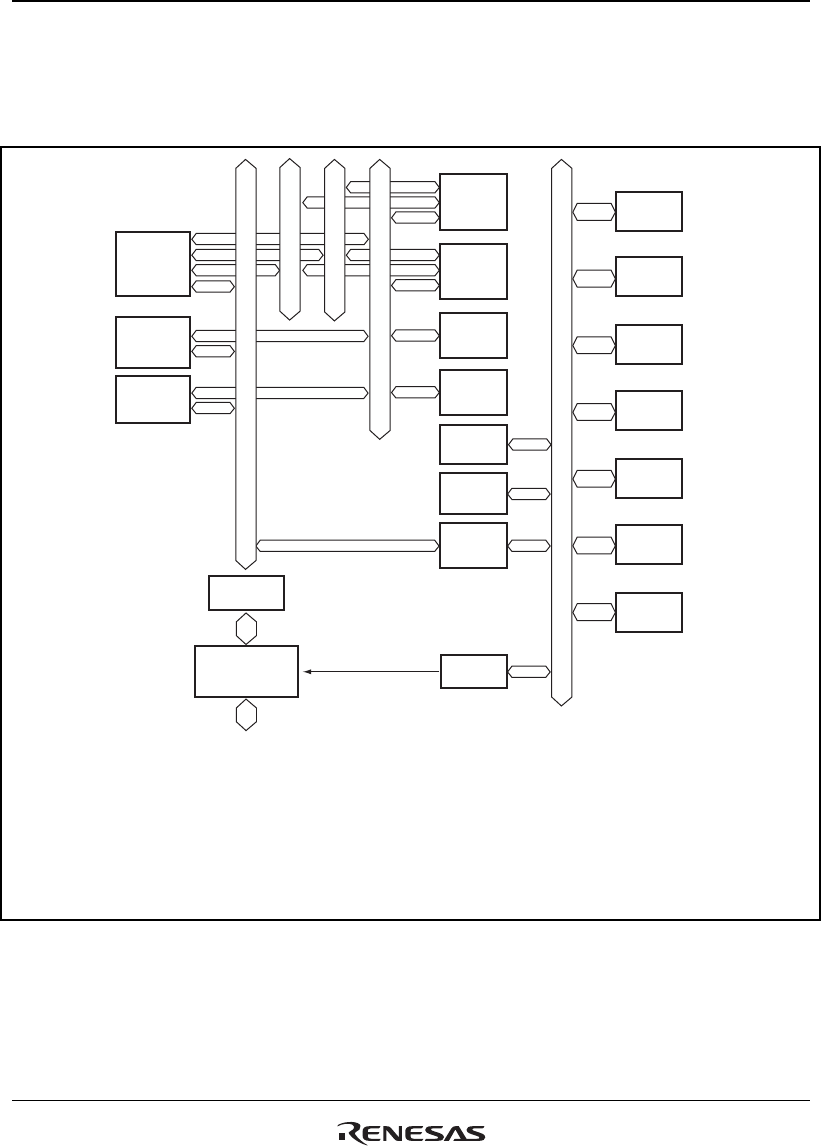

Figure 1.1 Block Diagram
