Section 18 Multi-Function Timer Pulse Unit (MTU)
Rev. 4.00 Sep. 14, 2005 Page 623 of 982
REJ09B0023-0400

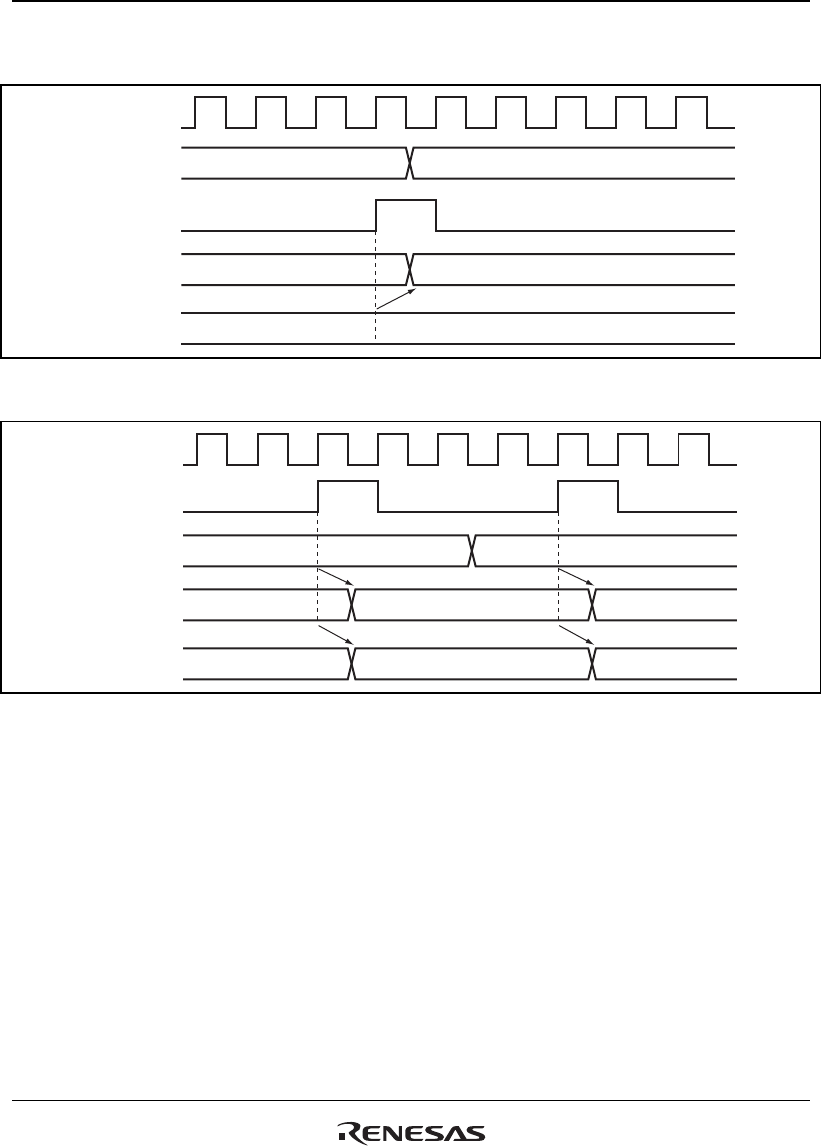

Buffer Operation Timing: Figures 18.62 and 18.63 show the timing in buffer operation.
TGRA,
TGRB
Compare
match signal
TCNT
TGRC,
TGRD
n
N
N
n n+1
Pφ
Figure 18.62 Buffer Operation Timing (Compare Match)
TGRA,
TGRB
TCNT
Input capture
signal
TGRC,
TGRD
N
n
n N+1
N
N N+1
Pφ
Figure 18.63 Buffer Operation Timing (Input Capture)
