Section 18 Multi-Function Timer Pulse Unit (MTU)
Rev. 4.00 Sep. 14, 2005 Page 565 of 982
REJ09B0023-0400

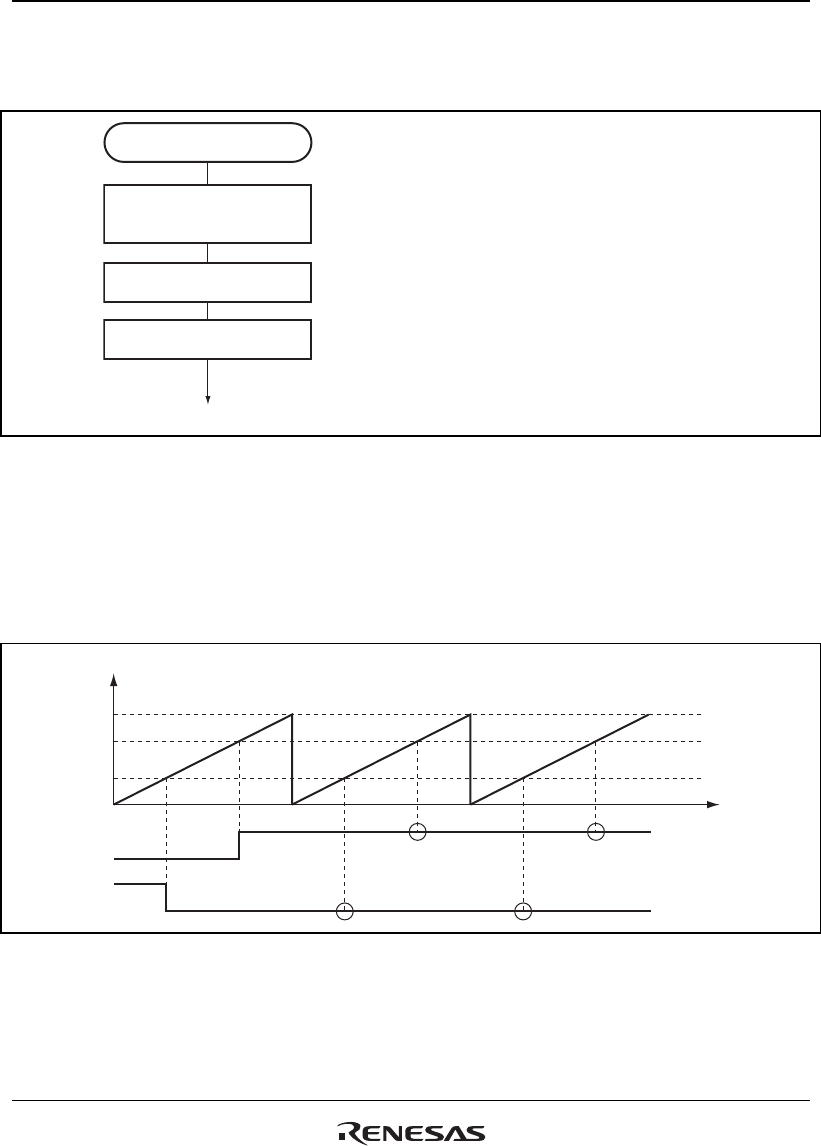

Example of Setting Procedure for Waveform Output by Compare Match: Figure 18.6 shows
an example of the setting procedure for waveform output by compare match
Output selection
Select waveform output
mode
Set output timing
Start count operation
<Waveform output>
[1]
[2]
[3]
[1] Select initial value 0 output or 1 output, and
compare match output value 0 output, 1
output, or toggle output, by means of TIOR.
The set initial value is output at the TIOC pin
until the first compare match occurs.
[2] Set the timing for compare match generation
in TGR.
[3] Set the CST bit in TSTR to 1 to start the
count operation.
Figure 18.6 Example of Setting Procedure for Waveform Output by Compare Match
Examples of Waveform Output Operation: Figure 18.7 shows an example of 0 output/1 output.
In this example TCNT has been designated as a free-running counter, and settings have been made
such that 1 is output by compare match A, and 0 is output by compare match B. When the set level
and the pin level coincide, the pin level does not change.
TCNT value
H'FFFF
H'0000
TIOCA
TIOCB
Time
TGRA
TGRB
No change No change
No change No change
1 output
0 output
Figure 18.7 Example of 0 Output/1 Output Operation
