Section 18 Multi-Function Timer Pulse Unit (MTU)
Rev. 4.00 Sep. 14, 2005 Page 611 of 982
REJ09B0023-0400
Toggle Output Synchronized with PWM Cycle: In complementary PWM mode, toggle output
can be performed in synchronization with the PWM carrier cycle by setting the PSYE bit to 1 in
the timer output control register (TOCR). An example of a toggle output waveform is shown in
figure 18.48.
This output is toggled by a compare-match between TCNT_3 and TGRA_3 and a compare-match
between TCNT4 and H'0000.
The output pin for this toggle output is the TIOC3A pin. The initial output is 1.
TGRA_3
H'0000
Toggle output
TIOC3A pin
TCNT_4
TCNT_3

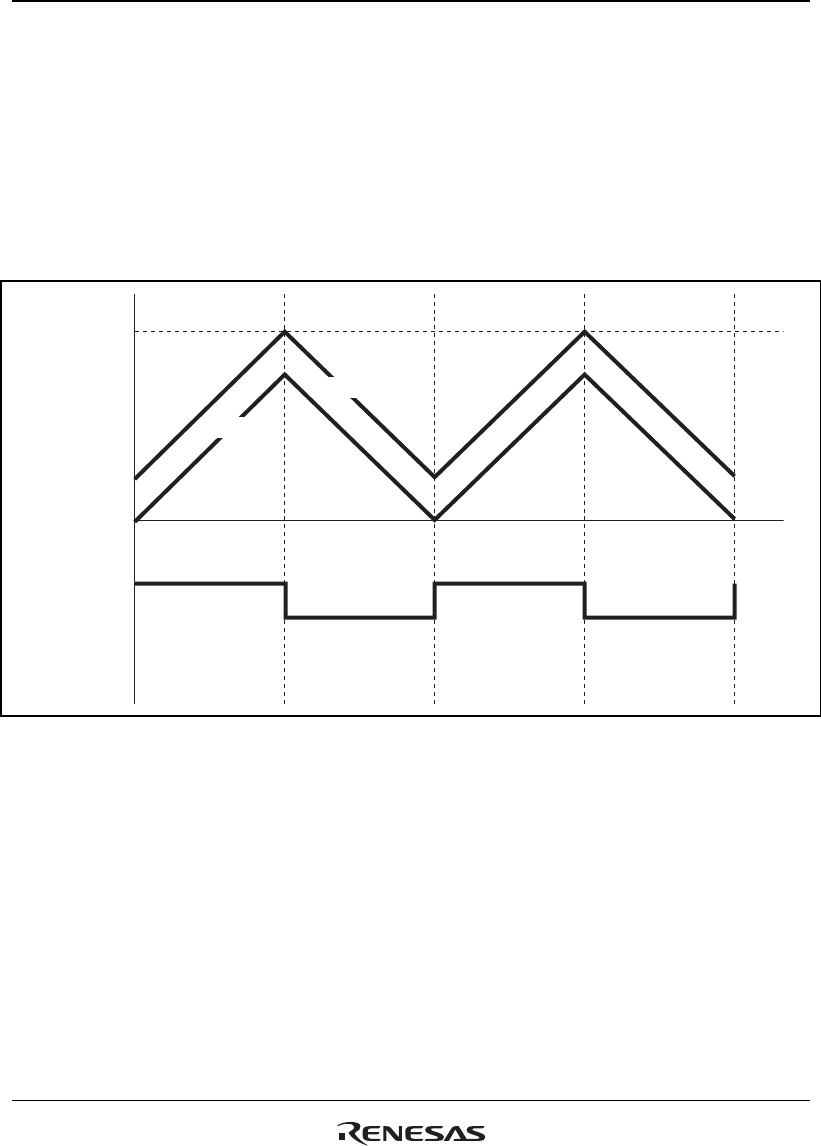

Figure 18.48 Example of Toggle Output Waveform Synchronized with PWM Output
