2. Low-Level Detection
Figure 18.116 shows the low-level detection operation. Sixteen continuous low levels are
sampled with the sampling clock established by the ICSR1. If even one high level is detected
during this interval, the low level is not accepted.
Furthermore, the timing when the large-current pins enter the high-impedance state from the
sampling clock is the same in both falling-edge detection and in low-level detection.
Pφ
Sampling
clock
3
POE input
TIOC3B/
PTE[6]
When low level is
sampled at all points
When high level is
sampled at least once
Flag set
(POE received)
Flag not set
Hi-Z state*
Note: *
Other high-current pins (TIOC3D/PTE[4], TIOC4A/PTE[3], TIOC4B/PTE[2], TIOC4C/PTE[1],
and TIOC4D/PTE[0]) also become the Hi-Z state at the same timing.
21
21
16
13
8/16/128 clock
cycles

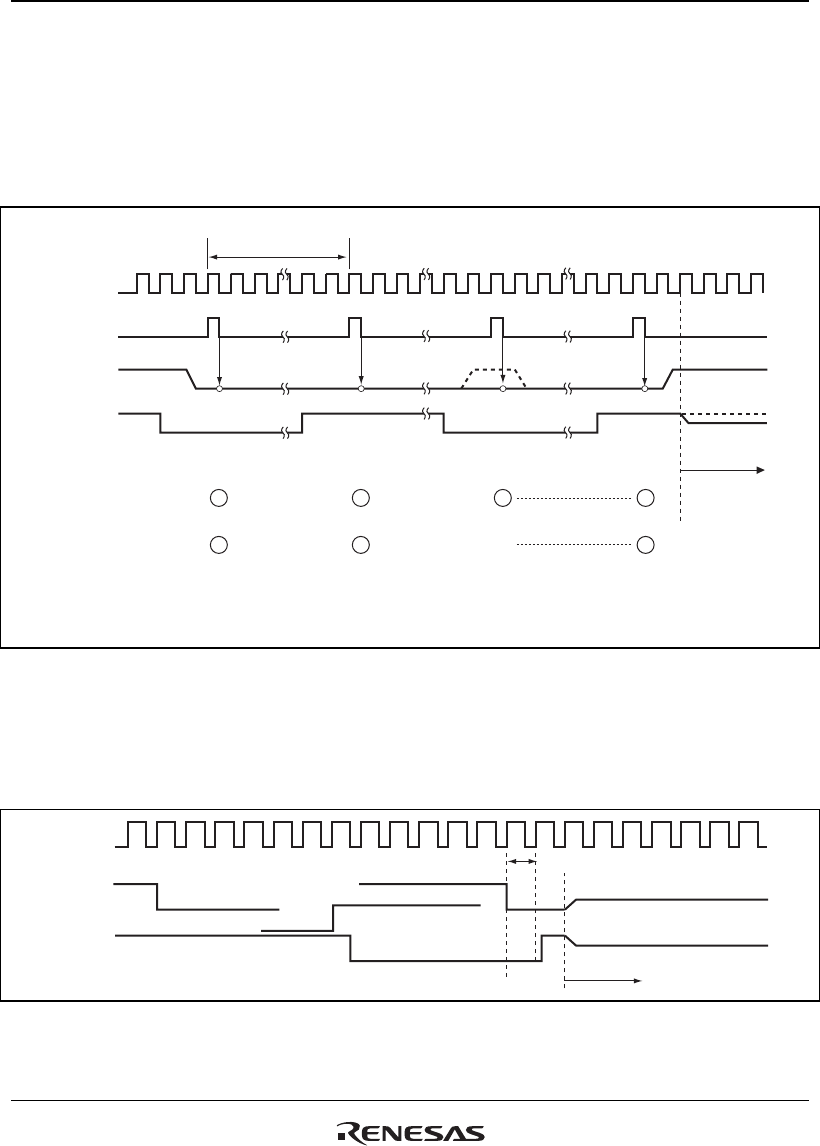

Figure 18.116 Low-Level Detection Operation
Output-Level Compare Operation: Figure 18.117 shows an example of the output-level
compare operation for the combination of TIOC3B/PTE[6] and TIOC3D/PTE[4]. The operation is
the same for the other pin combinations.
Pφ
TIOC3D/
PTE[4]
TIOC3B/
PTE[6]
0 level overlapping detected
Hi-Z
Figure 18.117 Output-Level Detection Operation
