Section 18 Multi-Function Timer Pulse Unit (MTU)
Rev. 4.00 Sep. 14, 2005 Page 574 of 982
REJ09B0023-0400
TCNT value
H'09FB
H'0000
TGRC
Time
H'0532
TIOCA
TGRA
H'0F07H'0532
H'0F07
H'0532
H'0F07
H'09FB

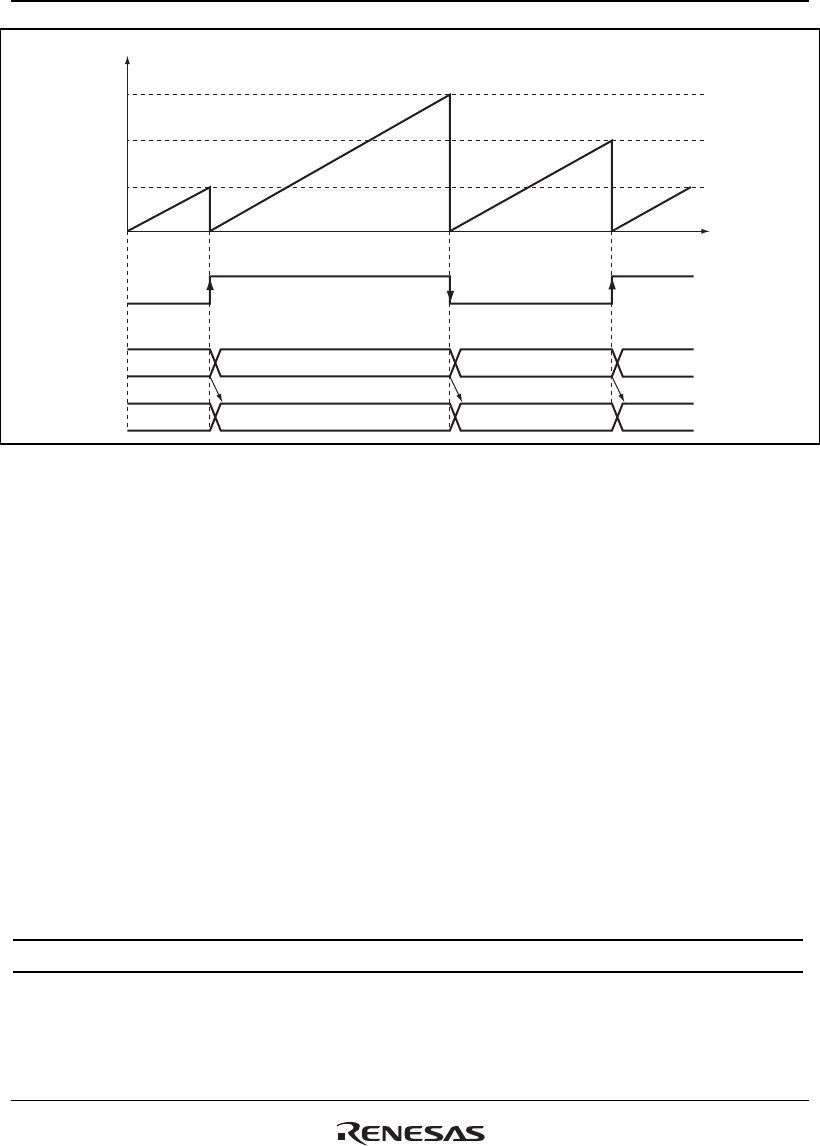

Figure 18.17 Example of Buffer Operation (2)
18.4.4 Cascaded Operation
In cascaded operation, two 16-bit counters for different channels are used together as a 32-bit
counter.
This function works by counting the channel 1 counter clock upon overflow/underflow of
TCNT_2 as set in bits TPSC0 to TPSC2 in TCR.
Underflow occurs only when the lower 16-bit TCNT is in phase-counting mode.
Table 18.30 shows the register combinations used in cascaded operation.
Note: When phase counting mode is set for channel 1 or 4, the counter clock setting is invalid
and the counters operates independently in phase counting mode.
Table 18.30 Cascaded Combinations
Combination Upper 16 Bits Lower 16 Bits
Channels 1 and 2 TCNT_1 TCNT_2
