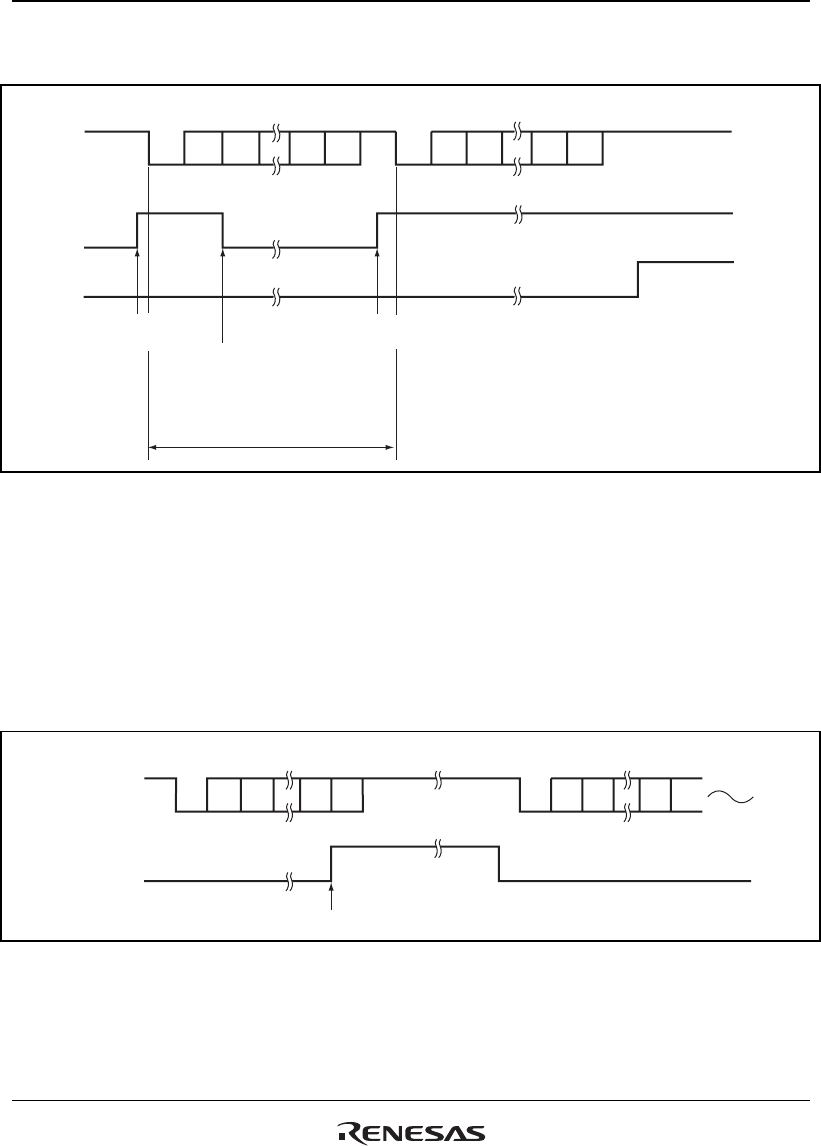

Figure 19.5 shows an example of the operation for transmission.
1
0 D0 D1 D7 0/1 1 0 D0
D1 D7 0/1 1
1
TDFE
TEND
Serial
data
Start
bit
Data Parity
bit
Stop
bit
Start
bit
Idle state
(mark state)
Data Parity
bit
Stop
bit
TXI interrupt
request
Data written to SCFTDR
and TDFE flag read as 1
then cleared to 0 by TXI
interrupt handler
One frame
TXI interrupt
request
Figure 19.5 Example of Transmit Operation
(8-Bit Data, Parity, One Stop Bit)
4. When modem control is enabled, transmission can be stopped and restarted in accordance with
the CTS input value. When CTS is set to 1, if transmission is in progress, the line goes to the
mark state after transmission of one frame. When CTS is set to 0, the next transmit data is
output starting from the start bit.
Figure 19.6 shows an example of the operation when modem control is used.
Serial data
TxD
0 D0 D1 D7 0/1 01 D0 D1 D7 0/1
CTS
Drive high before stop bit
Start
bit
Parity
bit
Stop
bit
Start
bit
Figure 19.6 Example of Operation Using Modem Control (CTS)
